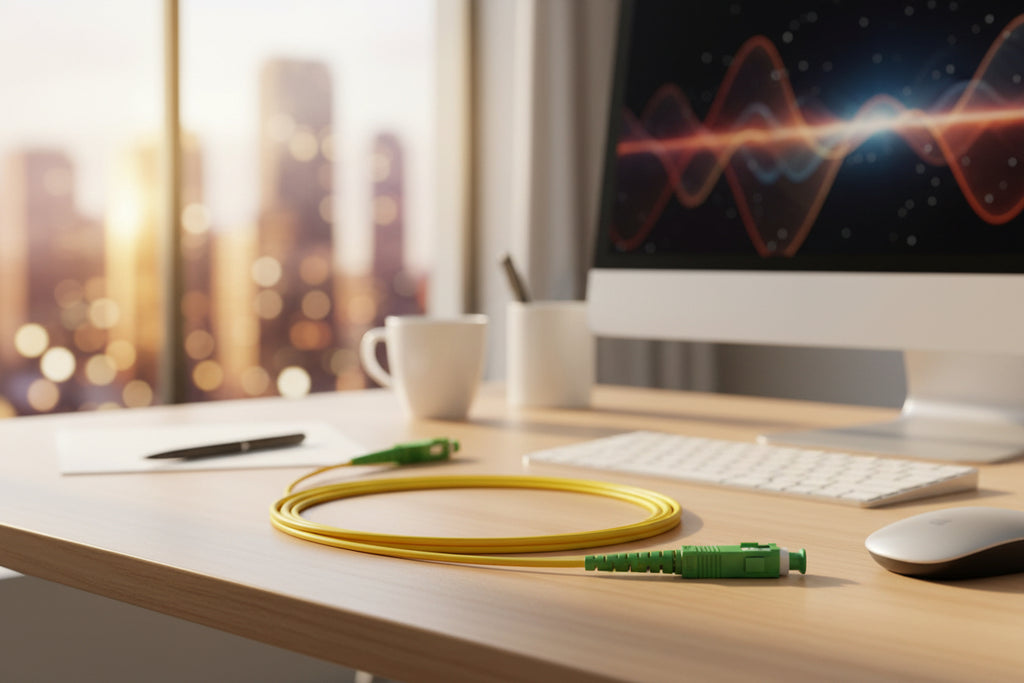

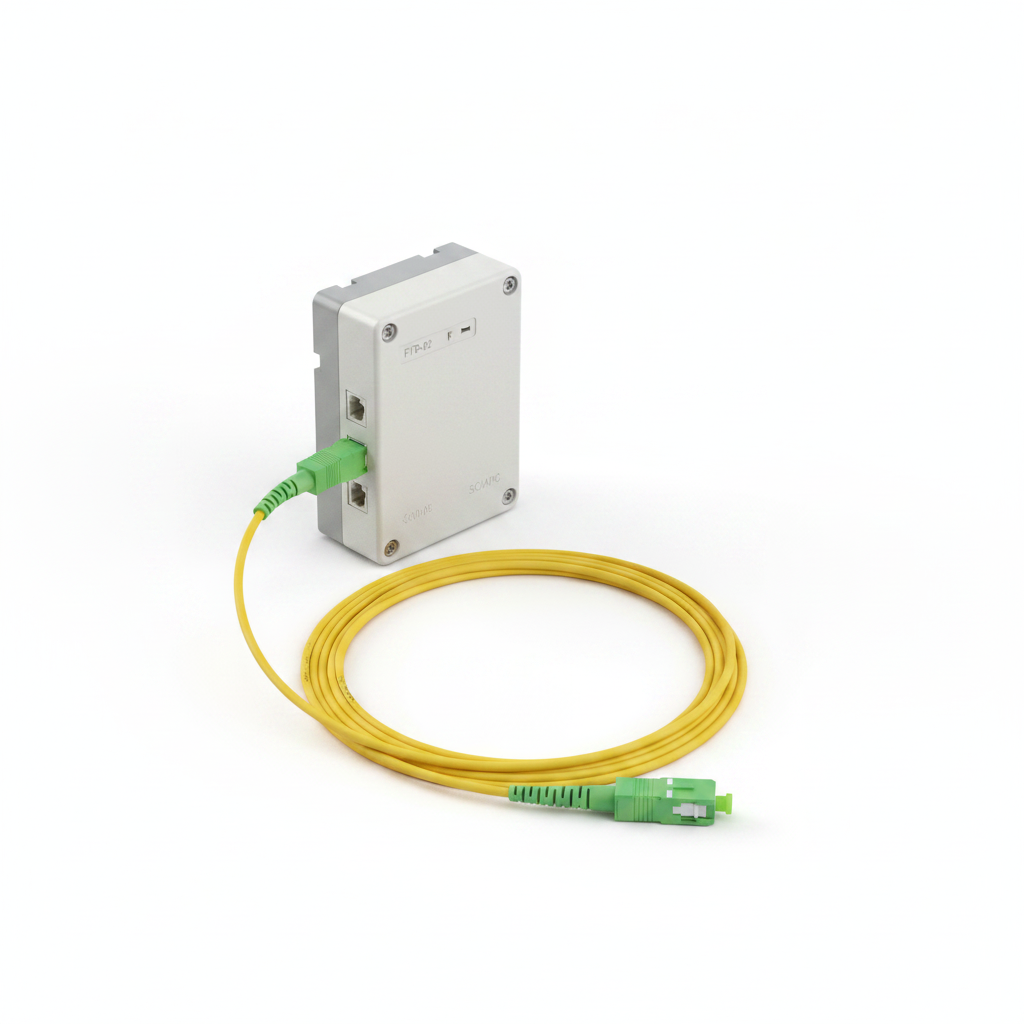

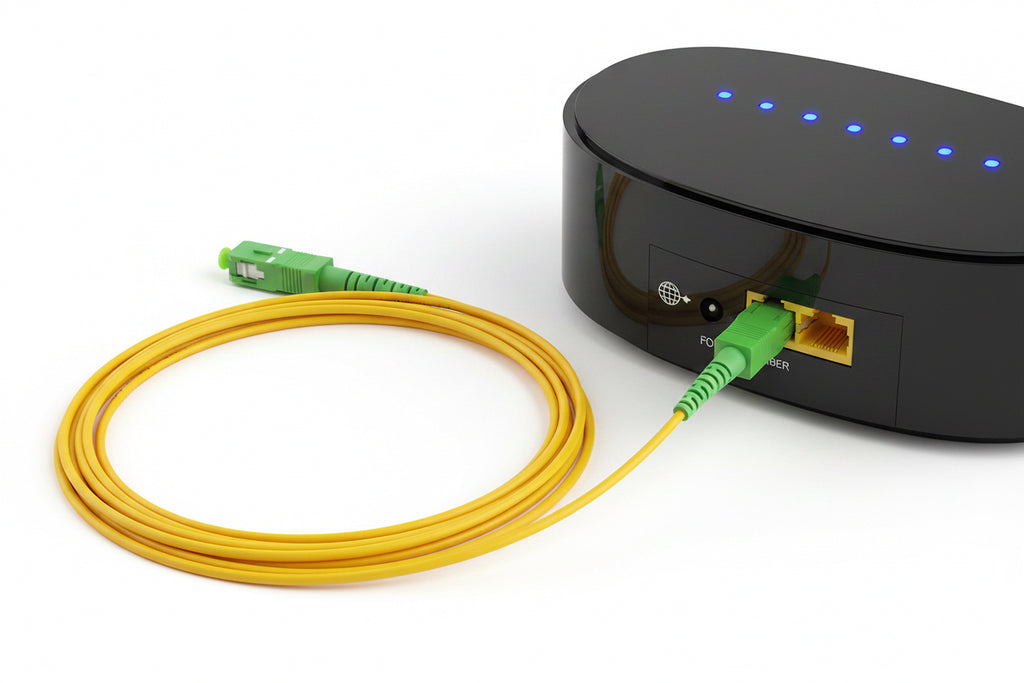

SC/APC - SC/APC 1M PATCH LEADS SINGLE MODE

Professional-grade single-mode fibre optic patch lead with SC/APC connectors on both ends. The angled physical contact (APC) design delivers superior back-reflection performance, making these leads ideal for FTTx, CATV, and high-speed WDM applications where return loss is critical.

Available in 1M, 2M, 3M, and 5M lengths to suit a range of rack, cabinet, and field installation requirements.

Key Features

• Connector type: SC/APC – SC/APC (both ends)
• Fibre type: Single-mode (G.652D / OS2)
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥60 dB (APC)
• Operating wavelength: 1310 nm / 1550 nm
• Jacket: Yellow LSZH (Low Smoke Zero Halogen)
• Suitable for: FTTx, CATV, telecom, data centres, enterprise networks

Technical Specifications
